| 蓄電池型號 | 額定電壓(V) | 額定容量 C10 Ah(1.80V,25℃) | 電池尺寸 | |||
| 長(L) /mm | 寬(b/W) /mm | 總高(H) /mm | ||||
| S512/260 | 12 | 250 | 521 | 268 | 227 | |
| S512/240 | 12 | 230 | 521 | 269 | 209 | |
| S512/215 | 12 | 200 | 522 | 240 | 223 | |
| S512/180 | 12 | 180 | 532 | 207 | 219 | |
| S512/160 | 12 | 150 | 483 | 170 | 240 | |
| S512/140 | 12 | 134 | 340 | 173 | 287 | |
| S512/125 | 12 | 120 | 408 | 172 | 227 | |
| S512/100 | 12 | 100 | 329 | 174 | 222 | |
| S512/95 | 12 | 90 | 306 | 168 | 216 | |
| S512/80 | 12 | 75 | 260 | 168 | 217 | |
| S512/70 | 12 | 65 | 350 | 166 | 174 | |
| S512/65 | 12 | 60 | 260 | 168 | 217 | |
| S512/55 | 12 | 55 | 228 | 138 | 215 | |
| S512/45 | 12 | 45 | 198 | 166 | 171 | |
| S512/40 | 12 | 40 | 198 | 166 | 171 | |
| S512/35 | 12 | 33 | 196 | 130 | 169 | |
| S512/25 | 12 | 24.4 | 166 | 175 | 125 | |
| S512/18 | 12 | 16.9 | 181 | 77 | 167 | |
蓄電池型號額定電壓(V)額定容量C20(Ah,25℃,1.75V)P15(25℃,1.60Vpc)(W/Block)電池尺寸長(L)/mm寬(b/W)/mm總高(H)/mmS512/18HR121845518177167S51...
蓄電池型號額定電壓(V)額定容量C10Ah(1.80V,25℃)電池尺寸長(L)/mm寬(b/W)/mm總高(H)/mmS512/26012250521268227S512/24012230521269209S512/2151220...
蓄電池型號額定電壓(V)功率P15min(W,1.67V，25℃)電池尺寸長(L)/mm寬(b/W)/mm總高(H)/mmPJ2V200HR2666171111351PJ2V300HR21000171150353PJ2V400HR2...

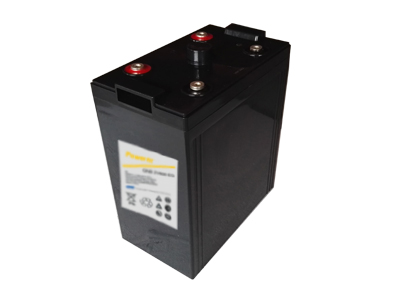

蓄電池型號額定電壓(V)額定容量C10(Ah,25℃,1.80V)電池尺寸長(L)/mm寬(b/W)/mm總高(H)/mmPJ2V100210017172214PJ2V1502150172102214PJ2V2002200171...

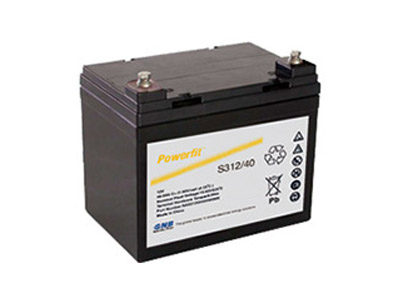

蓄電池型號額定電壓(V)額定容量C10(Ah,1.80V,25℃)電池尺寸長(L)/mm寬(b/W)/mm總高(H)/mmS312/5125.19070107S312/7126.715165100S312/9128.415165...
蓄電池型號額定電壓(V)額定容量C10(Ah,25℃,1.80V)電池尺寸長(L)/mm寬(b/W)/mm總高(H)/mmGNB2V100EG 2100 171 72&n...

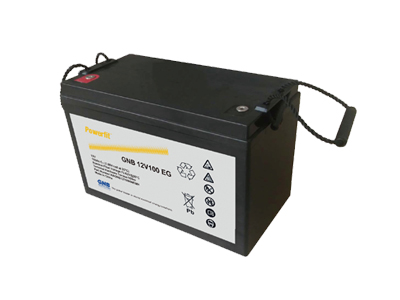

蓄電池型號額定電壓(V)額定容量C10(Ah,25℃,1.80V)電池尺寸長(L)/mm寬(b/W)/mm總高(H)/mmGNB12V5EG 12 5.0 90 70&nb...
蓄電池型號額定電壓(V)額定容量C10 (Ah,25℃,1.80Vpc)電池尺寸長(L)/mm寬(b/W)/mm總高(H)/mmJTT12V480012215522240221JTT12V4190121905222022...
